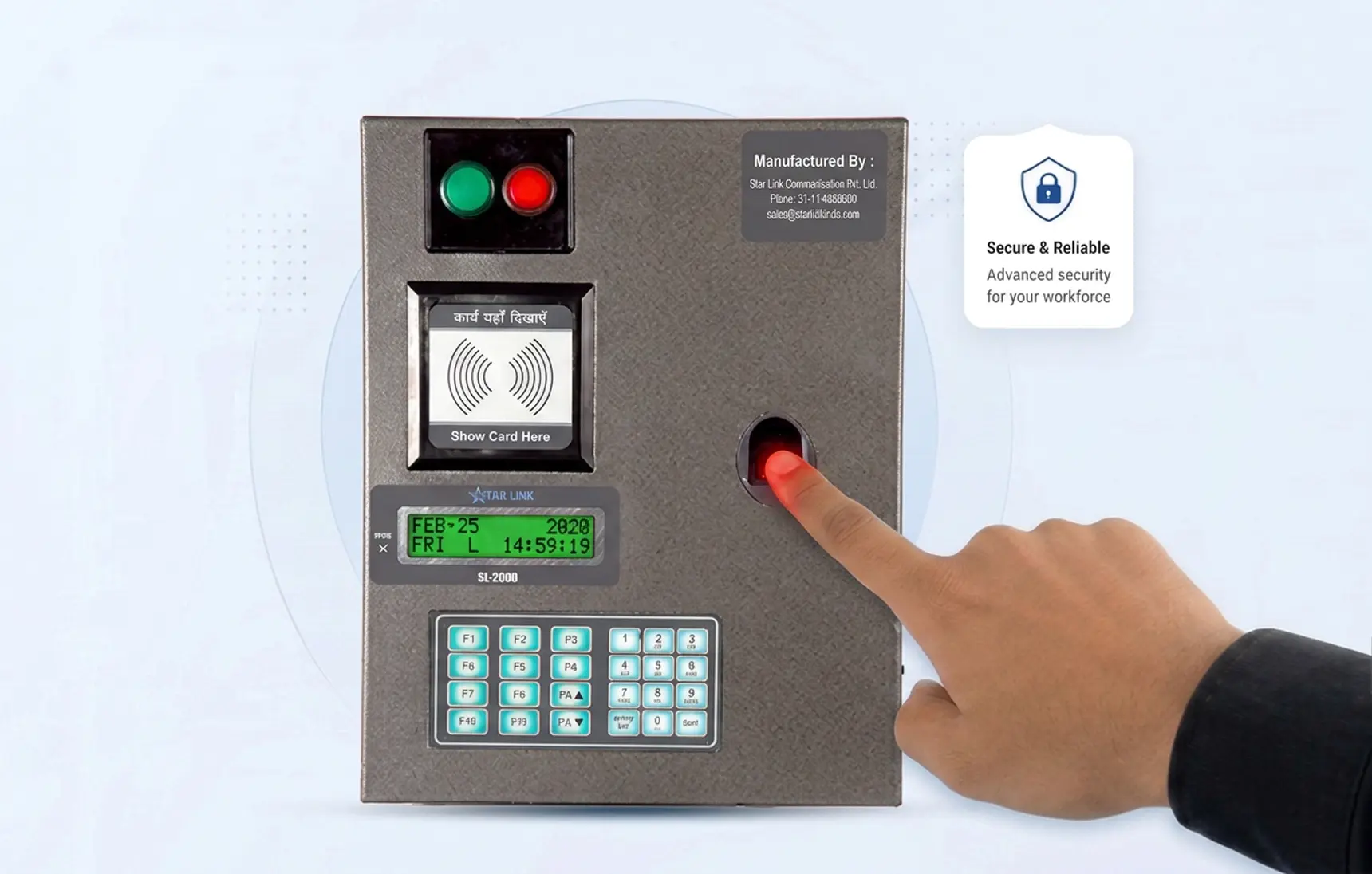

The Industrial Model comes in a heavy metallic body for dusty and harsh environments. This model is really worthy for access control as it can be used for access control of employees and security guards. It has 62,500 records storage capacity with 9560 fingerprint templates storage capacity.
The Industrial Model is another state-of-the-art from Star Link that serves its purpose of maintaining attendance records of the employee in Industries or big set-ups.
Bio Lynx introduction video | Fingerprint Attendance System
5,00,000 Records
High Speed Algorithm
RS-232, USB, TCP/IP, Wi-Fi
External Camera via USB
Large LCD
Display
Upto 9,560 fingerprint
templates storage capacity
Option 25000 storage
at extra cost
Heavy duty
metallic body
Remote device
management
Access Control
Ready
Built-in battery
backup upto 28 hours
Built-in TCP/IP
connectivity
Built-in camera for
photo capturing (optional)
Customization
possible

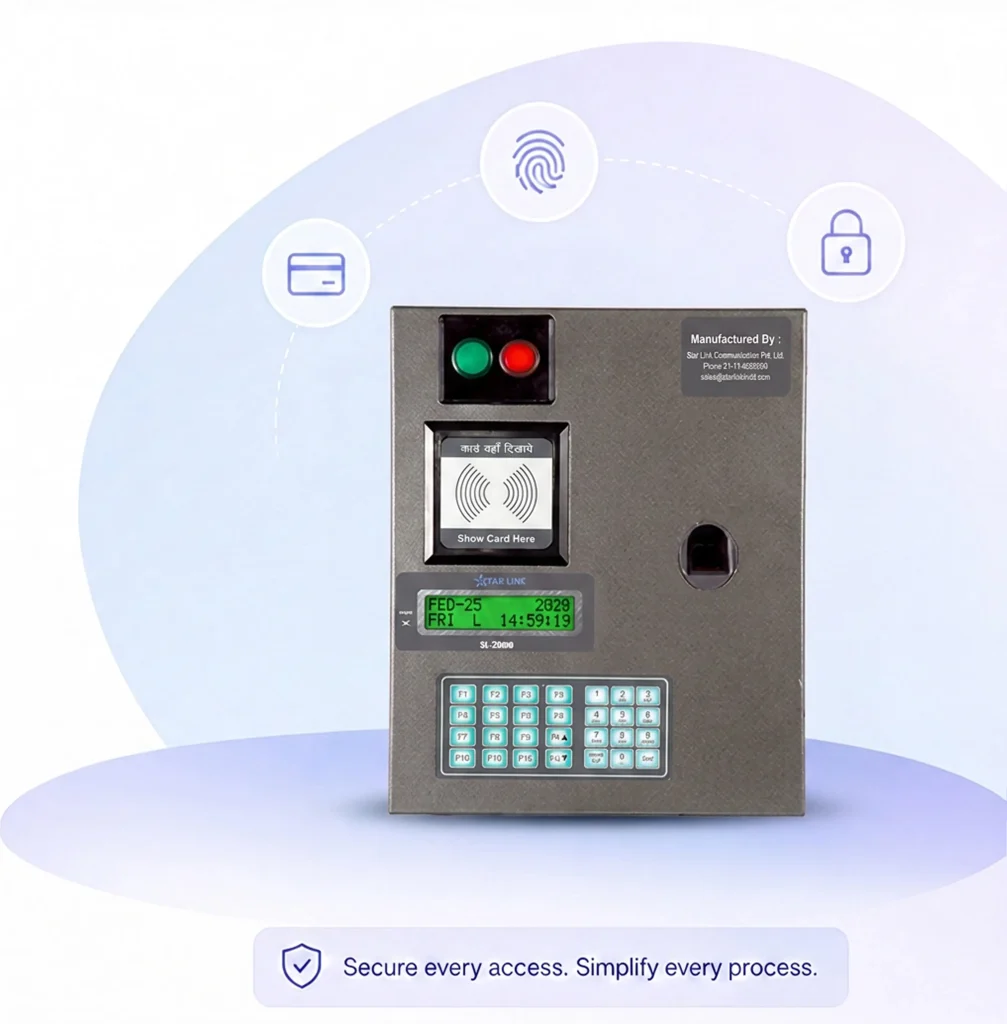

Industrial Model is available in 3 models, depending on its operational mode.

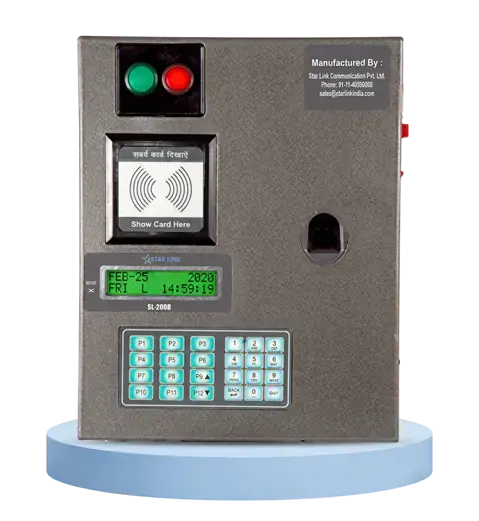

| Reader Type | SMART CARD | PROXIMITY CARD | FINGERPRINT |
|---|---|---|---|
| Model No. | SCHD – 06 | PCHD – 06 | FPHD – 06 |
| Processor | 32 Bit RISC MCU | 32 Bit RISC MCU | 32 Bit RISC MCU |
| Card Type | 1K,4K | EM Card 512 Byte | N/A |
| Read Range | Up to 60 mm | Up to 120 mm | Up to 60 / 120 mm |
| Frequency /Modulation | 13.56 Mhz. | 125 Khz. | 125 Khz/13.56 Mhz. |
| Identification Time | Less than 1 sec. | Less than 1 sec. | Less than 1 sec. |
| Display LCD | 16 x 2 Character | 16 x 2 Character | 16 x 2 Character |
| Memory Transaction | 62,500 records | 62,500 records | 62,500 records |
| Card Masking | 15,000 records | 15,000 records | 2000-9,500/6,500 records |
| Communication Mode | RS 232, TCP/IP | RS 232, TCP/IP | RS 232, TCP/IP |
| Operating Temperature | 5 to 50 °C | 5 to 50 °C | 5 to 50 °C |
| Baud Rate | 10/100 Mbps | 10/100 Mbps | 10/100 Mbps |
| Operating Humidity | 10 to 90% | 10 to 90% | 10 to 90% |
| Operating Voltage | 180-240V AC | 180-240V AC | 180-240V AC |
| Dimension (in mm) | H=360, W=290, B=90 | H=360, W=290, B=90 | H=360, W=290, B=90 |
| Weight | 6 kgs. | 6 kgs. | 6 kgs. |
| Keypad | 4 x 6 | 4 x 6 | 4 x 6 |
| Audio/Video Indicators | Buzzer / LED | Buzzer / LED | Buzzer / LED |
Dedicated 400MHz DSP
2 MB RAM
ISO/IEC 19794
384 bytes.
Optical CMOS
16.0mm × 19.0mm
272 × 320
500 dpi
1:N, 1:1
< 0.1%
1~1.5 Sec
< 0.8 Sec
1~1.5 Sec
EER < 0.1%
Quick Enrollment & Verification
Advanced Optical Technology
School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines, SDK available for any other applications for system integrato
Choose the verification method that fits your security needs. One device, multiple ways to authenticate.
The device is specifically designed with a heavy metallic body built to withstand dusty, harsh, and rugged industrial conditions.
It can store up to 62,500 transaction records in its memory, which is ideal for tracking large workforces over extended periods.
The fingerprint variant (Model FPHD–06) holds up to 9,560 fingerprint templates. However, if your workforce expands, you can request an optional storage upgrade of up to 25,000 templates for an extra cost.
It is available in three distinct model numbers based on your preference for user validation:
SCHD – 06: Smart Card reader
PCHD – 06: Proximity Card reader
FPHD – 06: Fingerprint reader
Yes, it features a heavy-duty built-in battery backup. Depending on your configuration and model, it can keep the device operational for up to 28 to 48 hours during power outages.
The scanner has an identification and verification time of less than 1 second (typically between 0.8 to 1.5 seconds depending on the mode), ensuring quick clock-ins without causing long queues.
The scanner has an identification and verification time of less than 1 second (typically between 0.8 to 1.5 seconds depending on the mode), ensuring quick clock-ins without causing long queues.
The device features built-in TCP/IP and RS 232 communication modes, allowing managers to fetch attendance records seamlessly with a single click of a mouse.
It is equipped with a 16×2 character LCD display to show employee information, alongside two large, highly visible status lights (Red and Green) to visually indicate whether an attendance entry was successful.
Yes, it is fully “Access Control Ready.” You can use it to secure restricted zones and control physical access for both standard employees and security guards.
The machine operates on a standard voltage range of 180–240V AC and features a 32-Bit RISC MCU processor for quick data handling.
The industrial unit has a solid presence, measuring 360mm (Height) x 290mm (Width) x 90mm (Breadth) and weighing 6 kgs.
It operates reliably in temperatures ranging from 5°C to 50°C and can handle non-condensing humidity levels between 10% to 90%.
Standard uses: Time Attendance, Access Control, Payroll, Canteen management, and Visitor identification.
Extended uses: School/College management, Gym/Club management, and Coffee vending machine integration. An SDK is also available for custom third-party software integration.
Yes, a built-in camera for photo capturing is available as an optional feature if your organization requires physical image verification alongside biological or card scanning.
