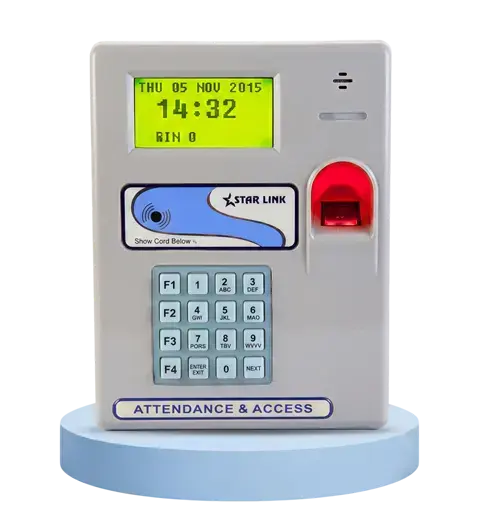

Experience the new world of biometrics with the Classic Model, which is exquisitely made to serve your purpose of attendance system and access control. Made with the latest technological array including unmatchable features make it a perfect solution.
The Classic Model has a recording capacity of 62,500 records with up to 9,560 finger templates (that can be extended up to 25,000 for 1:1 matching). It can be installed in any kind of setup where you want to maintain the attendance records of employees.
Bio Lynx introduction video | Fingerprint Attendance System
5,00,000 Records
High Speed Algorithm
RS-232, USB, TCP/IP, Wi-Fi
External Camera via USB
LCD Display
16 characters/2 rows
32 bit RISC
micro processor
Capacity of
62,500 records
9,560 fingerprint
templates storage capacity
More than 5 lacs
recording capacit
Multiple operational
modes
Built-in 10/100 Mbps
TCP/IP connectivity
Access Control
Ready
Customization
possible

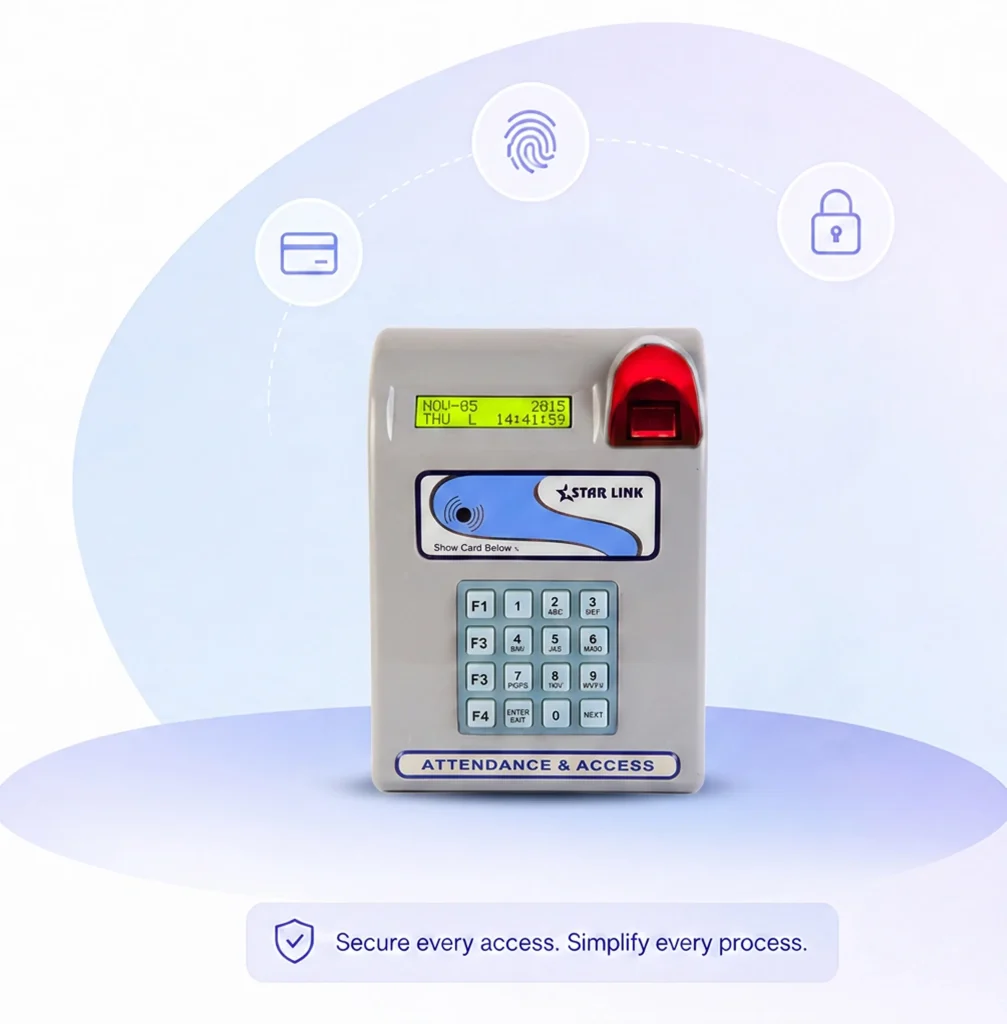

Classic Model is available in 3 model, depending on its operational mode.
| Reader Type | SMART CARD | PROXIMITY CARD | FINGERPRINT |
|---|---|---|---|
| Processor | 32 Bit RISC MCU | 32 Bit RISC MCU | 32 Bit RISC MCU |
| Card Type | 1K,4K | EM Card 512 Byte | N/A |
| Read Range | Up to 60 mm | Up to 120 mm | Up to 60 / 120 mm |
| Frequency /Modulation | 13.56 Mhz. | 125 Khz. | 125 Khz/13.56 Mhz. |
| Identification Time | Less than 1 sec. | Less than 1 sec. | Less than 1 sec. |
| Display LCD | 16 x 2 Character | 16 x 2 Character | 16 x 2 Character |
| Memory Transaction | 62,500 records | 62,500 records | 62,500 records |
| Card Masking | 15,000 records | 15,000 records | 2000-9,500/6,500 records |
| Communication Mode | RS 232, TCP/IP | RS 232, TCP/IP | RS 232, TCP/IP |
| Operating Temperature | 5 to 50 °C | 5 to 50 °C | 5 to 50 °C |
| Operating Humidity | 10 to 90% | 10 to 90% | 10 to 90% |
| Operating Voltage | DC 12V, 500 mA | DC 12V, 500 mA | DC 12V, 500 mA |
| Dimension (in mm) | H=183, W=131, B=58 | H=183, W=131, B=58 | H=183, W=131, B=58 |
| Weight | 600 gms | 600 gms | 600 gms |
| Keypad | 4 x 4 | 4 x 4 | 4 x 4 |
| Audio/Video Indicators | Buzzer / LED | Buzzer / LED | Buzzer / LED |
Dedicated 400MHz DSP
2 MB RAM
ISO/IEC 19794
384 bytes
Optical CMOS
16.0mm × 19.0mm
272 × 320
500 dpi
1:N, 1:1
< 0.1%
1~1.5 Sec
< 0.8 Sec
1~1.5 Sec
EER < 0.1%
Quick Enrollment & Verification
Advanced Optical Technology
Time Attendances, Access Control, Payroll, Canteen, Visitor, Guard Tracking System
School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines, (SDK available for any other applications for system integrators)
Choose the verification method that fits your security needs. One device, multiple ways to authenticate.
The Classic Model is an exquisite, versatile biometric system designed for managing employee time attendance and managing access control across various corporate or institutional setups.
The device can securely store up to 62,500 transaction records in its internal memory.
By default, the device stores up to 9,560 fingerprint templates. For larger requirements, it can be optionally extended up to 25,000 templates specifically for 1:1 matching.
It is available in three technical reader variants depending on your organizational workflow:
* Smart Card Reader (supports 1K and 4K cards)
* Proximity Card Reader (supports 512-Byte EM cards)
* Fingerprint Reader
It features a compact footprint measuring 183mm (Height) x 131mm (Width) x 58mm (Breadth) and weighs only 600 grams, making it much lighter and smaller than industrial models.
Unlike the industrial AC models, the Classic Model runs on a low-voltage DC 12V, 500 mA power supply.
The Classic Model is built to interface directly with physical entry barriers, including Boom Barriers, Turnstiles, and Flap Barriers, to automate physical access control.
Yes. Aside from standard office attendance, one of its featured applications is serving as a Guard Tracking System to monitor patrol shifts and locations.
The device comes with built-in 10/100 Mbps TCP/IP and RS 232 communication modes, allowing administrators to pull real-time data with a simple mouse click.
It includes a clean 16 character x 2 row LCD display that provides clear text readouts during a user punch, along with a standard 4×4 physical keypad.
Depending on your model variant, it supports multiple verification options:
* Only Finger or Only Card (Smart Card)
* Card with finger
* Finger in card (stores 2 fingers in 1KB card, 10 fingers in 4KB card)
* Card with password, PIN with password, or Only PIN
The embedded scanner features an internal verification speed of less than 0.8 seconds, with an overall identification time of just 1 to 1.5 seconds.
It features an Optical CMOS sensor with a 16.0mm x 19.0mm sensing area. It outputs images at a crisp resolution of 500 dpi with an Equal Error Rate (EER) of less than 0.1%.
The Classic Model operates reliably in temperatures between 5°C to 50°C and non-condensing humidity levels ranging from 10% to 90%.
Yes. Outside of standard Payroll, Attendance, Canteen, and Visitor management, an SDK is available for system integrators to link the device with custom systems like School/College Management, Club Management, Gym Management, or Coffee Vending Machines.
