Recording capacity of
5 lacs records
24x7x365 Support No. 011-40848888 (Except National Holidays)
24x7x365 Support No. 011-40848888 (Except National Holidays)
Products

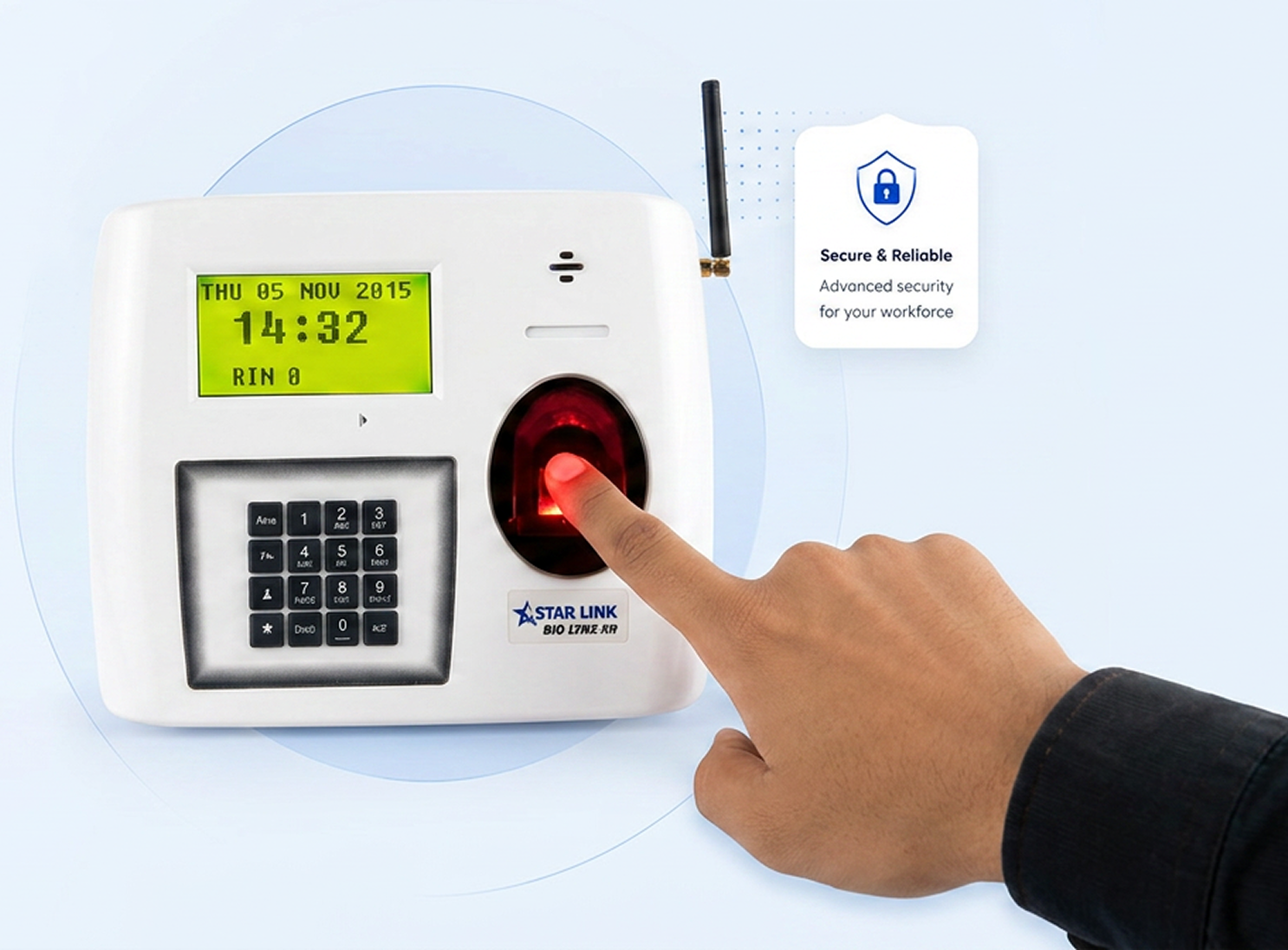

Bio Lynx is another masterpiece from Star Link that serves its purpose of attendance perfectly. It helps to manage the workforce properly and allows you to have a look at the exact working time of employees. It features capacity storage of 5,00,000 records while 9,560 finger templates can be stored in it.
Bio Lynx introduction video | Fingerprint Attendance System
5,00,000 Records
High Speed Algorithm
RS-232, USB, TCP/IP, Wi-Fi
External Camera via USB
Recording capacity of
5 lacs records
2000 - 9,560 fingerprint
templates storage capacity
External 2MP camera interface
(optional at extra cost)
User capacity of
15,000 employees
RS-232, USB, TCP/IP
and Wi-Fi connectivity
Fast identification
in less than 1 second

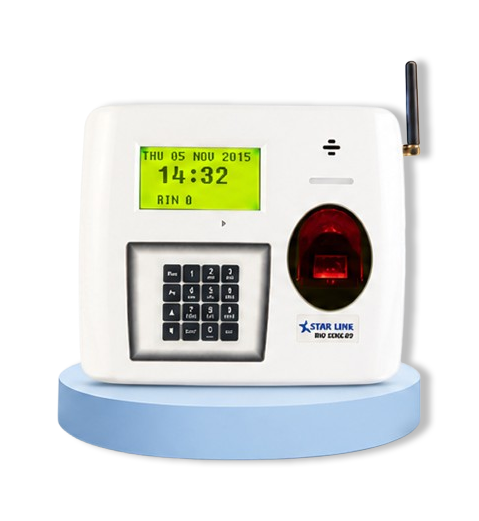

Engineered for performance and built for reliability. Everything you need in one intelligent device.
Dedicated 400MHz DSP
2 MB RAM
ISO/IEC 19794
Fingerprint Template
Optical CMOS
16.0mm × 19.0mm
272 × 320
500 dpi
1:N, 1:1
< 0.1%
1~1.5 Sec
< 0.8 Sec
1~1.5 Sec
EER < 0.1%
Quick Enrollment & Verification
Advanced Optical Technology
School / College Mat., Club Mat., Gym Mgt., Coffee Vending Machines, (SDK in server mode only available for any other applications for system integrator)

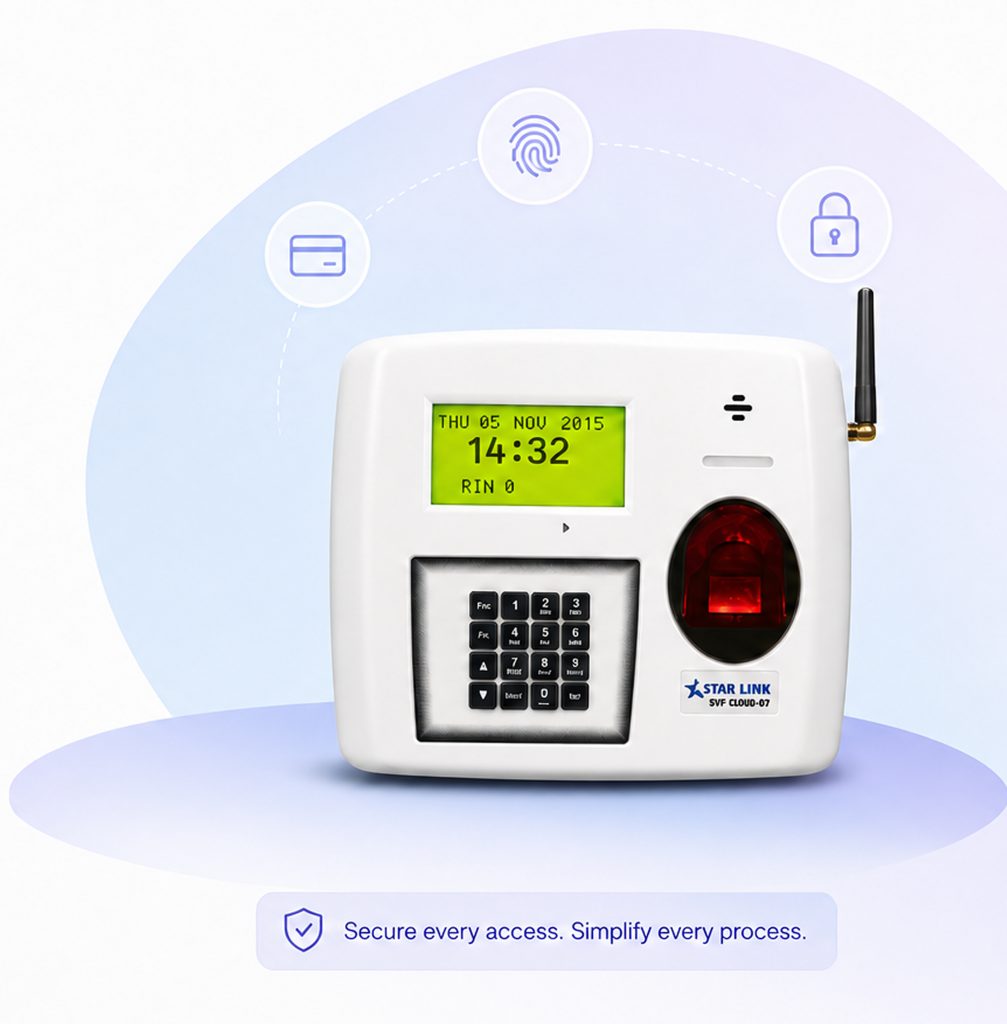

Choose the verification method that fits your security needs. One device, multiple ways to authenticate.
Key features like Wi-Fi connectivity, the external 2MP camera interface, customized voice greetings, and even the battery backup are explicitly labeled as optional. If you need a completely wireless setup or identity verification photos, the actual deployment cost will be significantly higher than the base machine price.
While the hardware supports these standard applications, Star Link sells these as separate enterprise software modules (e.g., Savvy HRMS, Leave Management Software). You will likely face additional software licensing and integration fees to actually utilize the data the machine collects.
The machine can hold 15,000 card users, but it can only store 9,560 fingerprint templates. If your company enforces a mandatory “2 fingerprints registered per employee” rule for backup safety, the actual physical biometric user capacity drops to just 4,780 employees.
The specifications mention standard Optical CMOS technology with standard 1:N / 1:1 verification. It does not explicitly state that it detects fake silicone or gelatin fingers, which leaves the door open to “buddy punching” (employees clocking in for each other using mold duplicates) unless you buy the optional external camera.
The device uses “Data Push Technology” to send logs to a server. While it has a massive internal memory buffer of 500,000 logs, the security level of this local data cache (whether it is fully encrypted on the device’s local memory or easily retrievable via the pen drive slot by an unauthorized user) is not specified.
The technical specifications list an operating humidity of up to 90% non-condensing and zero dustproof/waterproof IP rating (e.g., IP65). If moisture, grease, or heavy dust gets onto the optical sensor or into the 16-key graphic keypad, registration read times will degrade sharply or fail entirely.
Star Link explicitly states that the Software Development Kit (SDK) for third-party system integrators is only available in server mode. If your organization relies on localized, client-side custom integrations or decentralized local API pulls, this machine will not support your network architecture.
