Larger LCD
display
24x7x365 Support No. 011-40848888 (Except National Holidays)
24x7x365 Support No. 011-40848888 (Except National Holidays)
Products

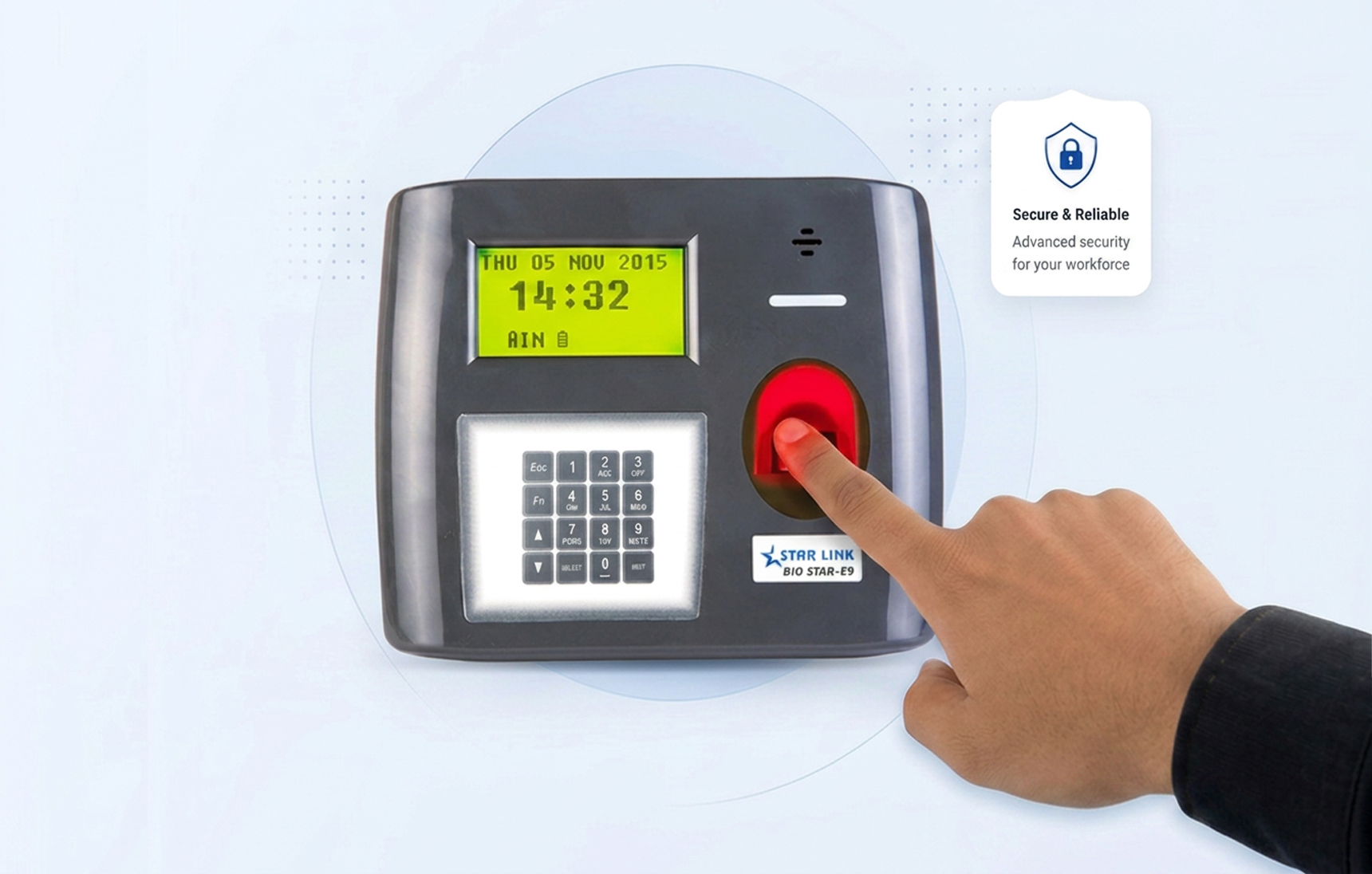

Bio Star 09 is a masterpiece in the field of attendance management and access control systems. It comes in a new and improved style with a larger graphics LCD display to show the information of the employee.
It has more than 5 lacs recording capacity with up to 9,560 finger templates storage capacity. The Bio-Star can be installed in any organization to manage the attendance records of employees. The software linked with this device easily grabs the data and helps to keep an updated record.
Bio Lynx introduction video | Fingerprint Attendance System
5,00,000 Records
High Speed Algorithm
RS-232, USB, TCP/IP, Wi-Fi
External Camera via USB
Larger LCD
display
9,560 fingerprint
templates storage capacity
More than 5 lacs
recording capacit
Multiple operational
modes
Communication Port
TCP/IP, USB
Access Control
Ready
Customization
possible

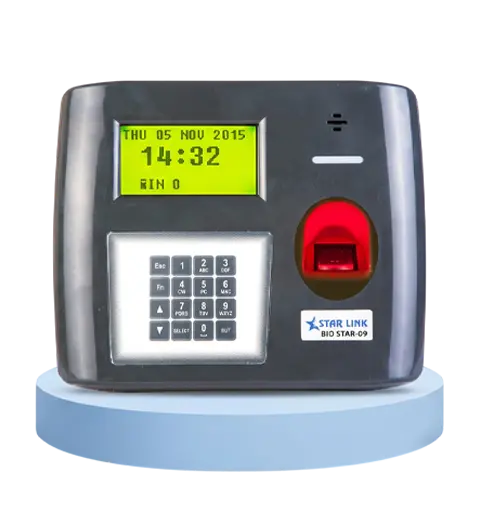

Engineered for performance and built for reliability. Everything you need in one intelligent device.
Dedicated 400MHz DSP 2MB RAM
ISO/IEC 19794
Optical CMOS
16.0mm × 19.0mm
272 × 320
500 dpi
1:N, 1:1
384 bytes
< 0.1%
1~1.5 Sec
< 0.8 Sec
1~1.5 Sec
EER < 0.1%
Quick Enrollment & Verification
Advanced Optical Technology
Time Attendance Machine, Visitor management system, Access Control, Payroll, Canteen, & Identifications
School / College Mgt., Club Mgt., Gym Mgt., Coffee Vending Machines, SDK available for any other applications for system integrators

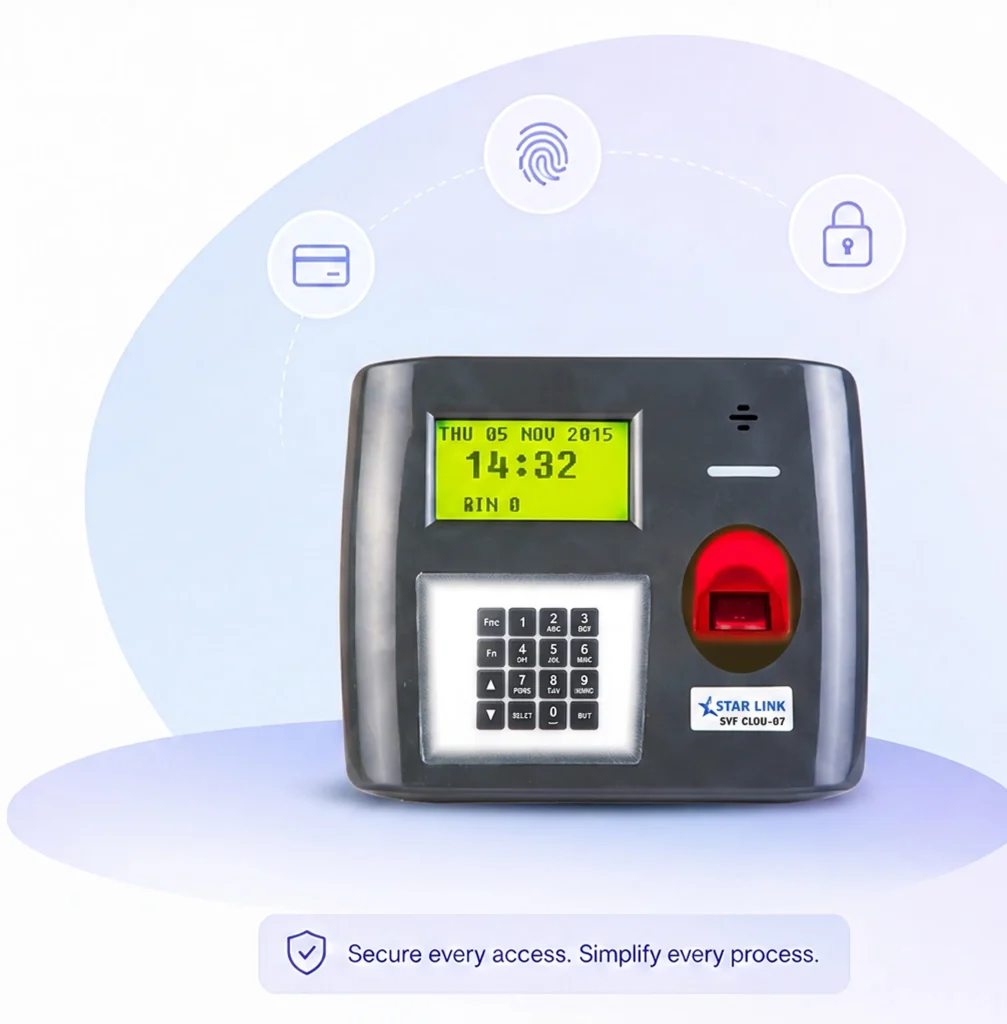

Choose the verification method that fits your security needs. One device, multiple ways to authenticate.
The Bio Link 09 is specifically tailored as an effective and budget-friendly time attendance and access control tool for small and medium setups with up to 100 users.
Despite its smaller footprint, it features an impressive memory capacity that logs up to 2 Lakh (200,000) transaction records.
It is equipped to store up to 600 fingerprint templates, providing plenty of memory room for small to mid-sized employee bases.
The machine comes bundled with Star Link’s dedicated Home Edition Software to help manage and track employee attendance records easily right from the start.
It features bilingual voice-guided messages (available in both English and Hindi) with adjustable volume controls to audibly confirm whether a punch-in was accepted or rejected.
It uses a yellow backlit 128×64 STN Graphic LCD display measuring 70.70 mm x 38.80 mm to show clear text updates and status notifications.
The device features TCP/IP connectivity for network integration alongside a dedicated USB port that allows administrators to export logs manually via a standard pen drive.
The device supports contactless card reader configurations, including:
The device supports two primary operational combinations: Only Finger or Only Card, depending on the specific model variant you choose.
Yes, it is fully Access Control Ready and can be physically linked to control hardware like Boom Barriers, Turnstiles, or Flap Barriers to secure building entryways.
The unit runs on a stable 32-Bit RISC MCU processor operating at 70MHz, supported by a dedicated 400MHz DSP sensor chip with 2MB RAM for processing biological data.
It is a highly compact, lightweight device measuring 182mm (Length) x 155mm (Height) x 45mm (Width) and weighs only 500 grams.
The machine runs on a standard DC 12V, 1 A Power Adapter. While it is primarily a plug-in device, an external battery backup can be added as an optional feature at an extra cost.
It features an Optical CMOS sensor with a 500 dpi resolution that enrolls fingers in 1 to 1.5 seconds and completes verification in less than 0.8 seconds (overall identification takes under 1 second).
The device is built to operate flawlessly within a temperature spectrum of 0°C to 50°C and non-condensing relative humidity levels between 10% to 90%.
